Westone Thunder active guitars - second version

See here for connection details to the pots and switches

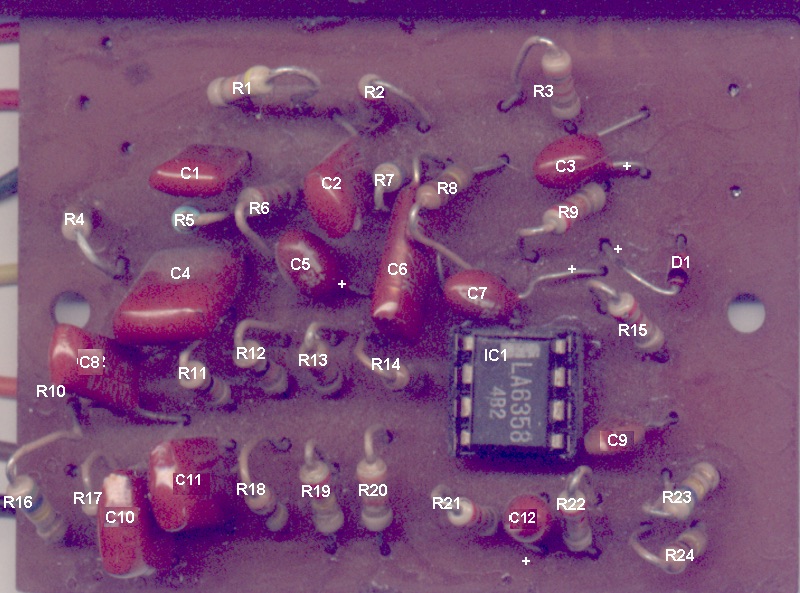

Component overlay

Parts list

RESISTORS
(All 0.25 watt 10% tolerance)


R1    47k
R2    22k
R3    33k
R4    120k
R5    2.2m
R6    2.2k
R7    68k
R8    100k
R9    22k
R10    100k
R11    10k
R12    10k
R13    33k
R14    100k
R15    22k
R16    560k
R17    10k
R18    100k
R19    220k
R20    33k
R21    22k
R22    22k
R23    560k
R24    100k

CAPACITORS
C1    4.7nF 472k Mylar film
C2    4.7nF 472k Mylar film
C3    4.7uF 35v tantalum
C4    47nF 473k Mylar film
C5    4.7uF 35v tantalum
C6    22nF 223k Mylar film
C7    4.7uF 35v tantalum
C8    6.8nF 682k Mylar film
C9    220pF ceramic
C10    47nF 473k Mylar film
C11    33nF 333k Mylar film
C12    4.7uF 35v tantalum


SEMICONDUCTORS
IC1 - LA6358 (Obsolete - use LM358)
D1 - small signal diode, probably 1N4148

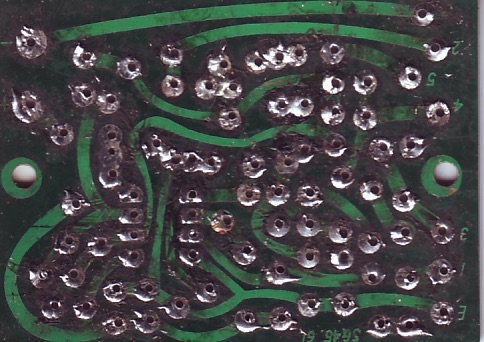

PCB bottom

PCB foil pattern - mirrored, see misc
